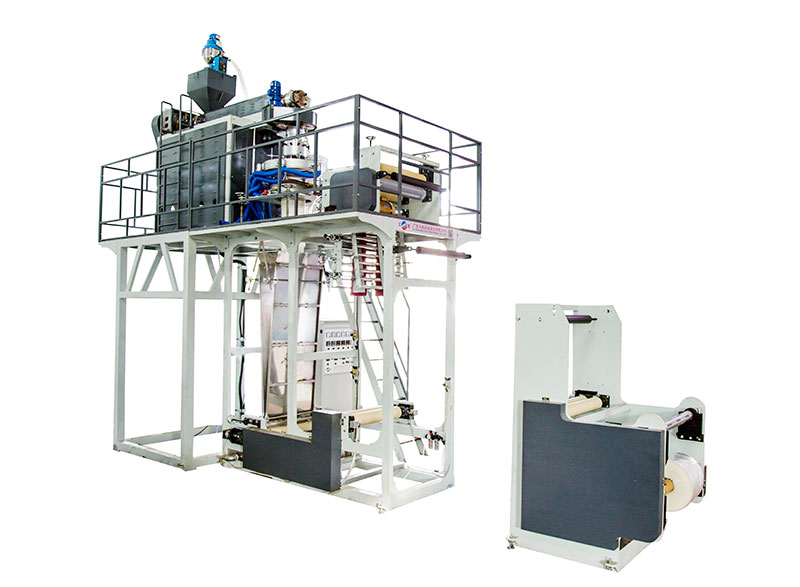

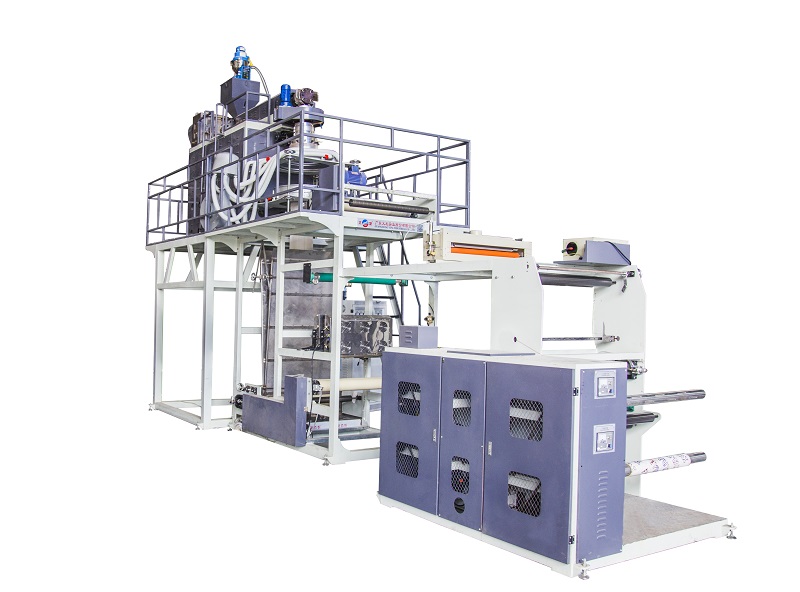

一.用途:
本机组适用于吹制PP/PE塑料薄膜,广泛用于食品,服装,纺织品,日用品等民用品和工业品的包装.二.特点:
1.模头能360度左右旋转,可增强塑料薄膜的强度和均匀度.2.螺杆,料筒均采用双合金钢材料,经氮化处理和精密加工而成,硬度高,耐腐蚀性强,经久耐用.
3.模头镀硬络,其结构为螺旋芯轴式,挤出的熔融料均匀,吹制的薄膜光洁度好；风冷装置结构为迷宫型,出风量均匀,采用循环水冷却。从而使吹制的薄膜达到很好的透明度。
4.卷取装置采用双工位中心收卷,采用力矩电机调节,收卷平整,换卷方便.
The first purpose:
This machine is suitable for blowing PP/PE plastic film, widely used in food, clothing, textiles,daily necessities and other supplies and industrial products packagingThe second. Characteristics:
1 die head can rotate 360 degrees, can enhance the strength and uniformity of plastic film2 screw, barrel are double alloy steel material, after nitriding and precision processing, high hardness, corrosion resistance, durable
3.The die hard chrome plating, screw mandrel type structure, melt extruding evenly, the blown plastic film has fine finishing; cooling equipment is a labyrinth, a uniform wind, the use of recycled water cooling. So as to make the film blowing up the best transparency.
4 coiling unit adopts double center winding adopts torque motor regulation, smooth rolling, roll changing easy.
三.主要技术参数
Main technical| 型号 TYPE |
YF-500型 | YF-700型 | YF-900型 | YF-1000型 | ||||
| 适用原料 Applicable materials |
HDPE／LDPE／LLDPE／PP |
|||||||
| 螺杆直径 Screw diameter（mm） |
Ø50/Ø60/Ø50 | Ø55/Ø65/ Ø55 |
Ø60/Ø70/Ø60 | Ø70/Ø85/ Ø70 |
||||
| 螺杆长劲比 Screw length ratio |
1:30 | 1:30 | 1:30 | 1:30 | ||||
| 主电机功率 Main motor power（kw） |
5.5kw | 11kw | 15kw | 18.5kw | ||||
| 挤出量 extrusion（kg/h） |
30kg/h | 45kg/h | 60kg/h | 70kg/h | ||||
| 产品宽度 Product width（mm） |
300mm | 500mm | 700mm | 800mm | ||||
| 产品厚度 Product thickness（mm） |
0.02-0.15mm | 0.02-0.20mm | 0.02-0.20mm | 0.02-0.20mm | ||||
| 螺杆转速 | 10-100r/min | |||||||
| 收卷方式 | 全自动中心/表面/间隙收卷 |
|||||||
| 外形尺寸(m) (长*宽*高) |
9.5×5×9m | 10×5.5×9.5m | 10×6×10.5m | 10.5×7×11m | ||||
由于不断研究改进，我司保留改变设计之权利。
Due to continuous improvement, we reserve the right to change design.
Due to continuous improvement, we reserve the right to change design.
